Product and packaging similar. Subject to modifications and errors.

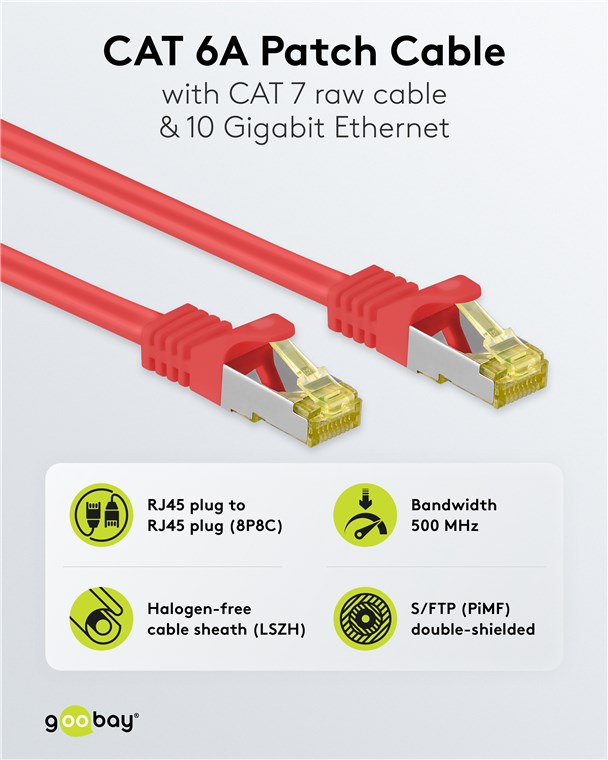

RJ45 Patch Cord CAT 6A S/FTP (PiMF), 500 MHz, with CAT 7 Raw Cable, red
LSZH halogen-free cable sheath, RJ45 plug (CAT 6A), CU
With the Goobay CAT cable, you can connect PCs, laptops, routers, switches, smart TVs, games consoles, NAS systems and many other devices quickly and reliably. The practical, reliable solution for home networks, working from home and professional work environments. Goobay patch cables are available in a wide range of categories, shielding options and lengths – for full flexibility in your network.
- Prewired, double-shielded LAN cable (CAT 7 with 600 MHz) with RJ45 connectors (CAT 6A with 500 MHz) for connecting network components
- High-speed network cable especially for game consoles with high-resolution picture (8K @ 60 Hz and 4K @ 120 Hz) such as Sony PlayStation 5 or Microsoft Xbox X

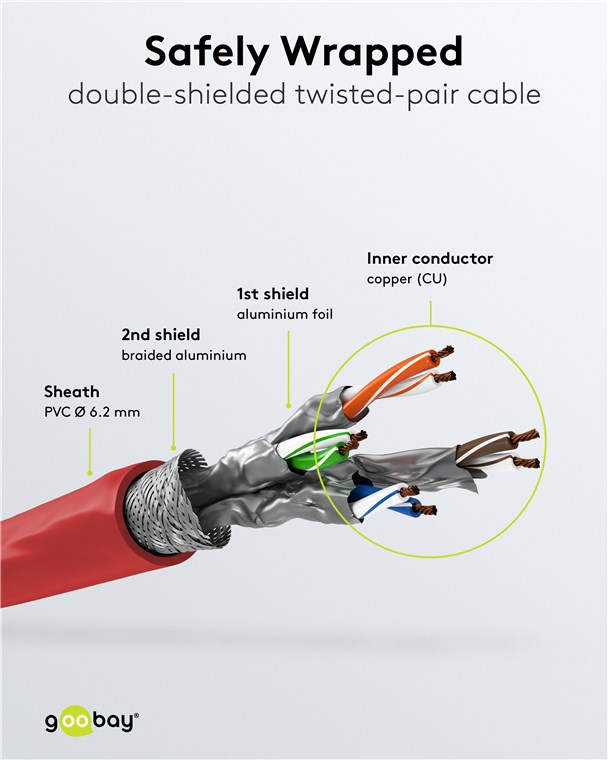

- S/FTP overall shield: aluminium foil shield for individual wire pairs (PiMF) and aluminium braid shield for the cable sheath
- High-quality copper conductor (CU) and 50µ gold-plated contacts guarantee an excellent, powerful network connection

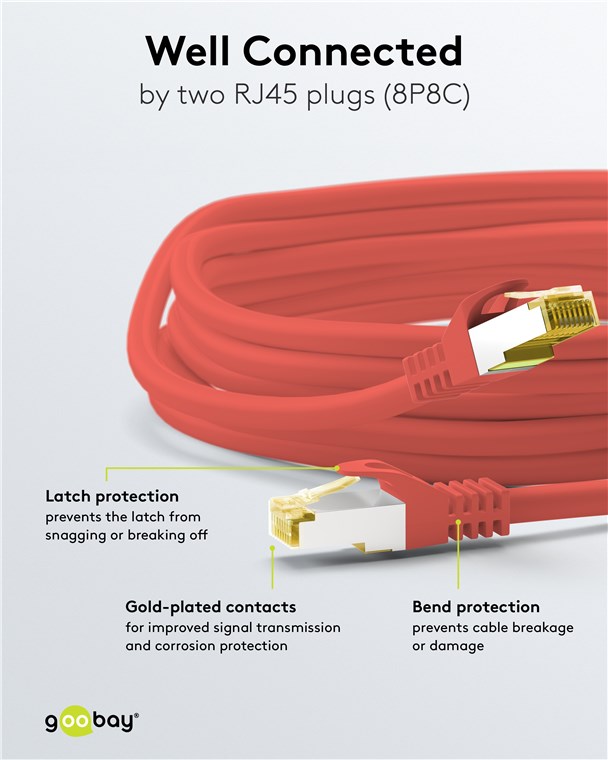

- Latch protection on the RJ45 connector prevents the latch from snagging or breaking off, helping to provide a reliable internet connection
- Bend protection and a sturdy jacket effectively protect the Ethernet cable from breakage
- CAT 7 cable is suitable for Power over Ethernet (PoE, PoE+) and 10 Gigabit Ethernet with speeds of up to 10/100/1000/10000 Mbit/s
Connections
| Kink protection |
both sides |
| Latch protection |
both sides |
| Connection, shielding |
yes |
| Connection, contact material |
gold-plated 50µm |
| Contacting |
EIA/TIA-568 B |
| Connection, type |
RJ45 male (8P8C) |
| Connection 2, type |
RJ45 male (8P8C) |
Cable
| Material cable sheath |
LSZH |
| Cable length |
1 m |
| Inner conductor material |
CU (copper) |
| Cable type |
Cat 7 raw cable |
| Specification |
CAT 7 |
| Shielding class |
S/FTP (PiMF) |
| Number of shieldings |
2 x |
| Type 1, shielding |
foil (alu) PiMF |
| Cable sheath diameter (approx.) |
6.2 mm |
| Type 2, shielding |
braid (alu) overall shield |
| AWG |
26/7 (stranded) |
| bending radius > |
48 mm |
| LSZH compliant |
yes |
Signal transmission
| max. bandwidth |
500 MHz |
| max. transmission rate |
10 Gbit/s |
General
| Color |
red |
| Markings |
CE, WEEE |
| Special feature |
Length indication on connector |
| Operating temperature from |
-20 °C |
| Operating temperature up to |
65 °C |
Packaging
| Consumption Unit |
1 pc. bulk |
| Packaging type |
Cable Tag |
