SAT Multi-Switch 9 Inputs/8 Outputs

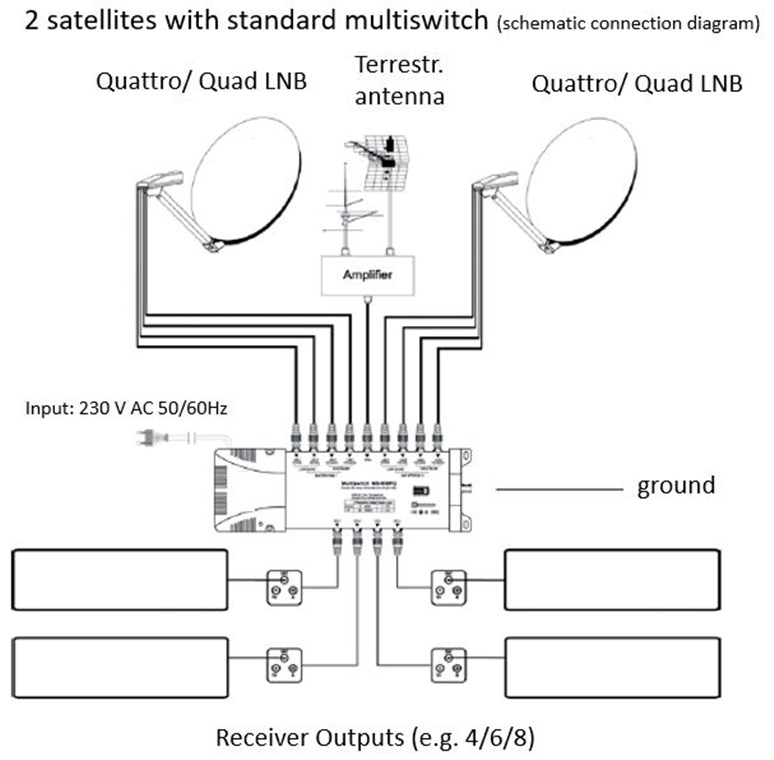

distributor for max. 8 participants from two satellites
- Via DiSEqC 2.0, two satellite positions can be selected and distributed to up to 8 participants
- Works with a Quad or Quattro LNB
- Built-in 22 kHz generator
- Suitable for DVB-T, DVB-S and DVB-S2 (UHD 8K/4K/HDTV/3D)
- Additional terrestrial antenna input (DVB-T/DVB-T2 HD)
- Integrated power supply unit with Europlug
- Input type: 9x F socket, output type: 8x F socket, input voltage: 230 V (AC), LNB power supply: 1000 mA, switching commands: 13/22 V/kHz, switching voltage: 15 +/- 0.5 V
Connections
| Input, type |
F female |
| Output, type |
F female |
Device connections
| max. subscriber |
8 |
| switching commands |
13/0; 18/0; 13/22; 18/22 |
| power supply for LNB |
1000 |
| Input Voltage |
230 V (AC) |
| number of inputs |
9 |
| Number of outputs |
8 |
Signal transmission
| Frequency range |
950 - 2.150 MHz |
| Frequency range terrestrial |
47 - 862 MHz |
| switching voltage |
15 |
| Polarization decoupling SAT |
28 - 30 dB |
| Output level SAT |
100 dBµV |
| Return loss SAT inputs |
10 - 14 dB |
| Return loss SAT outputs |
7 - 10 dB |
| Transmission modes |
DVB-S, DVB-S2, DVB-T |
| Terrestrial damping connection |
-2 - 0 dB |
| Polarisation decoupling terrestrial |
30 |
| Output level terr.: |
83 - 84 dBµV |
| Reverse flow damping terrestrial Inputs |
11 - 12 dB |
| Return loss terrestrial outputs |
8 - 10 dB |
| Impedance |
75 Ω |
General
| Color |
silver, blue |
| Material |
metal, plastic |
| Markings |
CE, WEEE |
| Packaging type |
White Box with Label |
Dimensions / Weight
| Consumption Unit |
1 pc. in cardboard box |
| Width |
365 mm |
| Height |
70 mm |
| depth |
120 mm |
