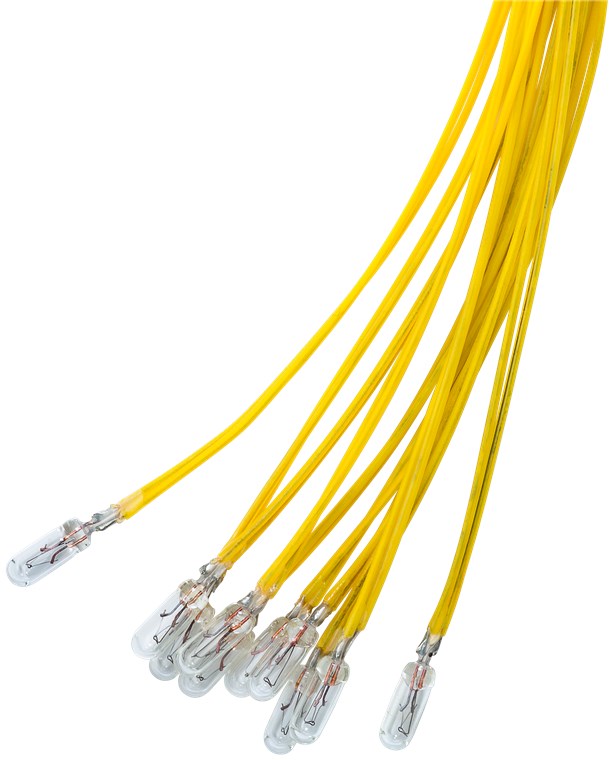

T1¼ Subminiature Bulb Pre-wired, 1.1 W

yellow0.3 m cable, 14 V (DC), 80 mA

• Grain of wheat bulb, suitable as a signal indicator in areas such as electronics, model making, toys and DIY
• connect the lamp via the 30 cm stranded wire, PVC 300/300 x 3.
• Cable colour: yellow, colour temperature: warm white
• Incandescent light bulb with C-2F filament

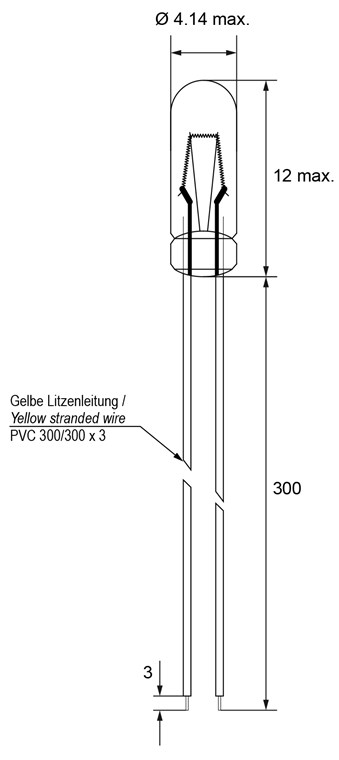

• Height bulb: max. 12 mm, Ø bulb: max. 4.14 mm, length wires: 300 mm, open cable ends: 3 mm

Technical specifications

Connections

construction form

tubular

Performance

Power consumption	1.1 W
luminous source	incandescent lamp (wolfram)
Luminous color	warm white
Rated current	80 mA
color temperature	2700 K
operating voltage	14 V (DC)

Cable

Cable length

0.3 m

Build

cover type	crystal clear
Base	Cable Strand

General

Color	yellow
Material	metal, glass, PVC
Markings	CE
General service life	5000 hrs.
Packaging type	Bulk

Dimensions / Weight

Consumption Unit	100 pcs. bulk
Height	12 mm
Diameter	4.14 mm
Weight	0.67 g
