HELIX

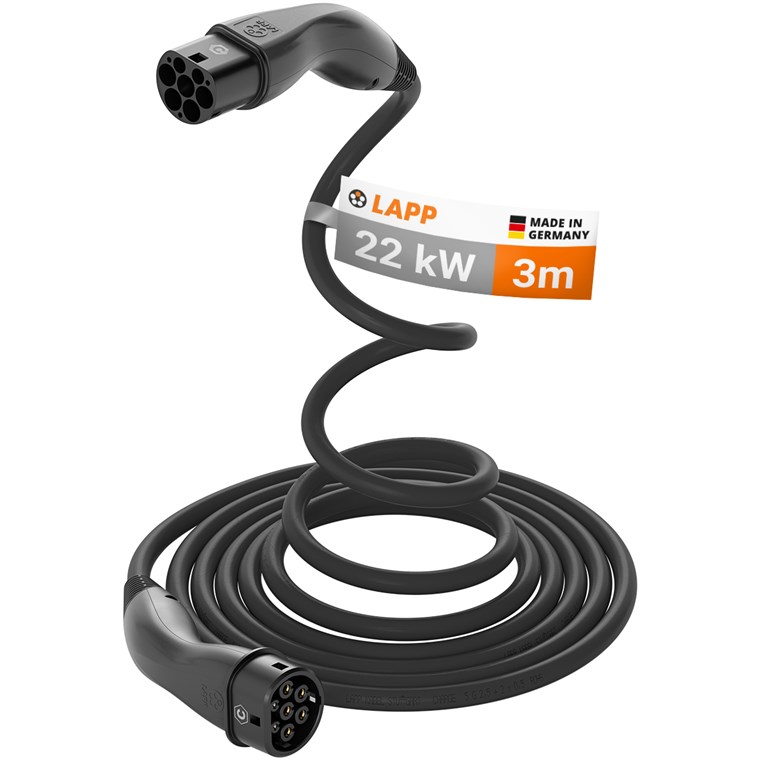

Type 2 Self-Retracting Charging Cable, up to 22 kW, 3 m, black
(5555934039) 32 A, 3 phases, for charging hybrid and electric cars with Type 2 connection
LAPP HELIX Type 2 charging cables connect your EV to the charging station, charging pole or wallbox - for easy charging at home or on the road. Simply connect the coupling of the cable to the car and the plug to the power source. The charging process is automatically started and finished by the on-board electronics. LAPP charging cables are suitable for plug-in hybrid (PHEV) and battery electric vehicles (BEV).

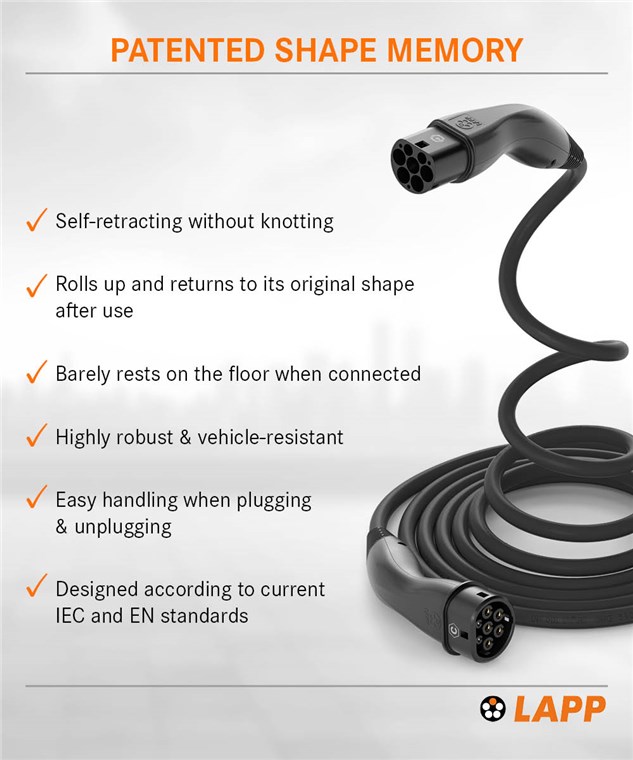

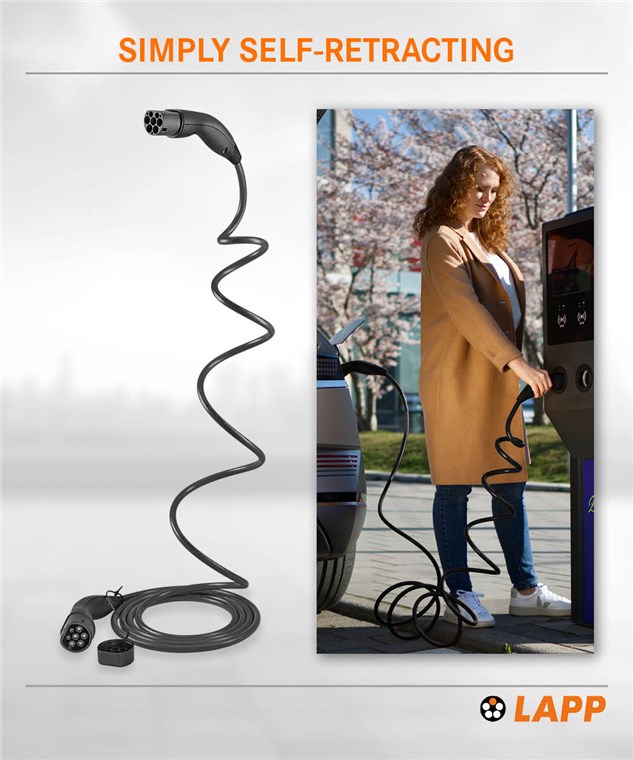

- Patented, self-retracting cable with shape memory that rolls up in a helical shape after use and is quickly stored away - without tangling
- The Type 2 charging cable from LAPP allows easy and fast charging with up to 22 kW at a public or private charging station or wallbox.
- High compatibility: In addition to 3-phase charging with 11 kW, the cable also supports 1-phase charging with 7.4 kW and 3.7 kW

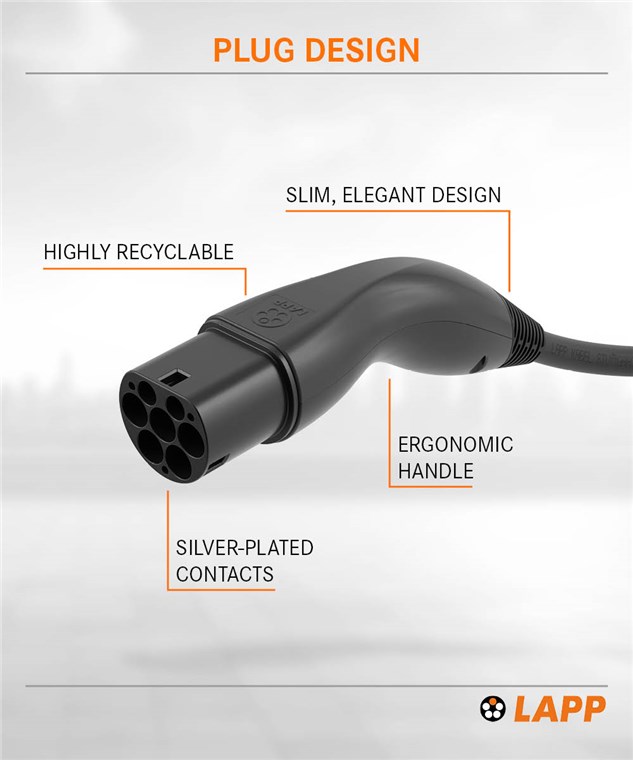

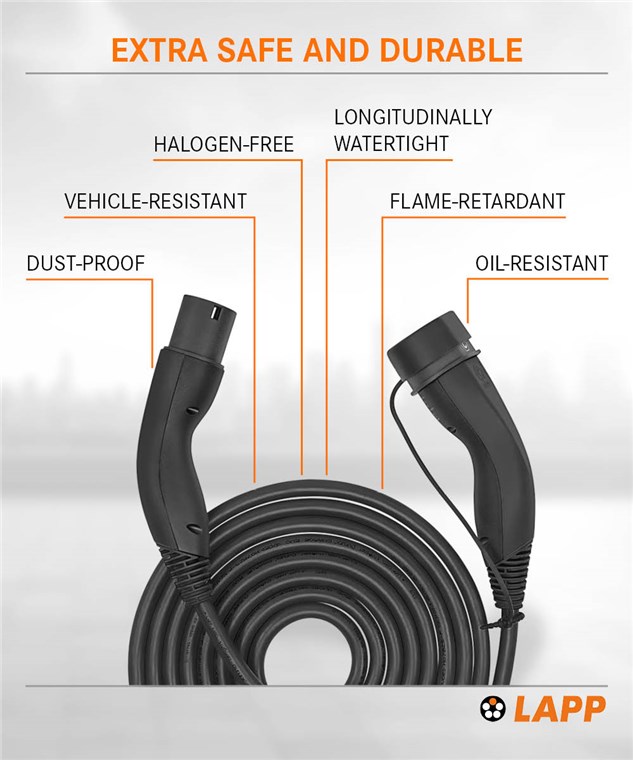

- Highly robust, vehicle-resistant cables and plugs with silver-plated contacts provide extra durability
- Oil-resistant and longitudinally watertight EV charging cable with high moisture protection according to IP55, operating temperature -40 °C to 50 °C
- The Type 2 to Type 2 EV charging cable is space-saving and easy to handle thanks to its light weight.
- Mode 3 charging cable manufactured according to current IEC and EN standards, compatible with European vehicles and charging stations as well as with CCS connections (Combo 2)
Language scope of the instruction manual (online):
Albanian, Arabic, Bosnian, Czech, Danish, Dutch, English, Finnish, French, German, Hebrew, Icelandic, Italian, Norwegian, Polish, Romanian, Russian, Spanish, Swedish, Turkish, Ukrainian.

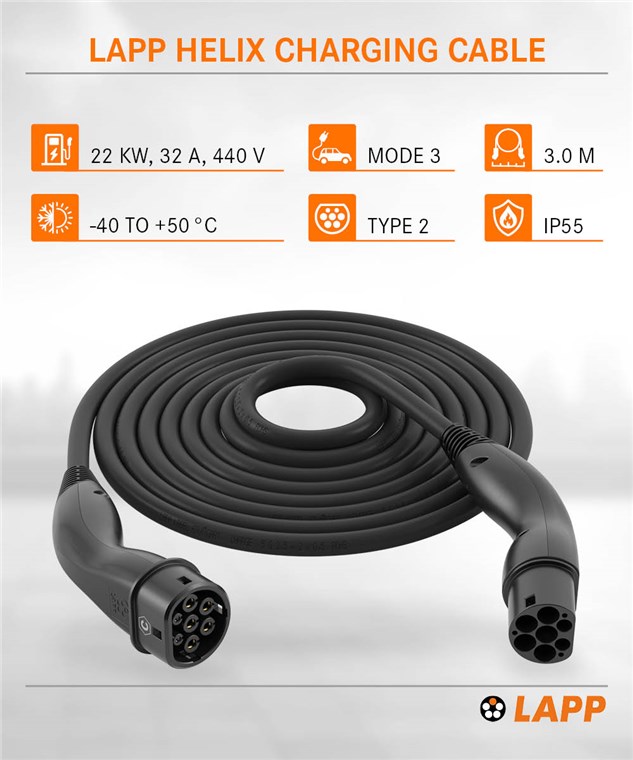

Technical specifications
Connections
| Connection 2, type | type 2 male plug |
| Connection, type | type 2 female plug |
Performance
| max current capacity | 32 A |
| Rated voltage | 440 V (AC) |
| Charging mode | Mode 3 |
| Loading capacity up to | 22 kW |
Cable
| Number of phases | 3 |
| Cable length | 3 m |
| Inner conductor cross-section | 6 mm² |
| Cable type | HELIX cable |
| Material cable sheath | ÖLFLEX®CHARGE |
General
| Special feature | Shape memory thanks to HELIX cables, Silver-plated, corrosion-resistant contacts, solid rubberized ergonomic grip design, VDE certified, VDE certified |
| Packaging type | Retail Box |
| Operating temperature from | -40 °C |
| protection class | IP55 |
| Color | black |
| Markings | WEEE, CE |
| Operating temperature up to | 50 °C |
Dimensions / Weight
| Weight | 2400 g |
£148.99 RRP
Packing units:
1 / 48
