Product and packaging similar. Subject to modifications and errors.

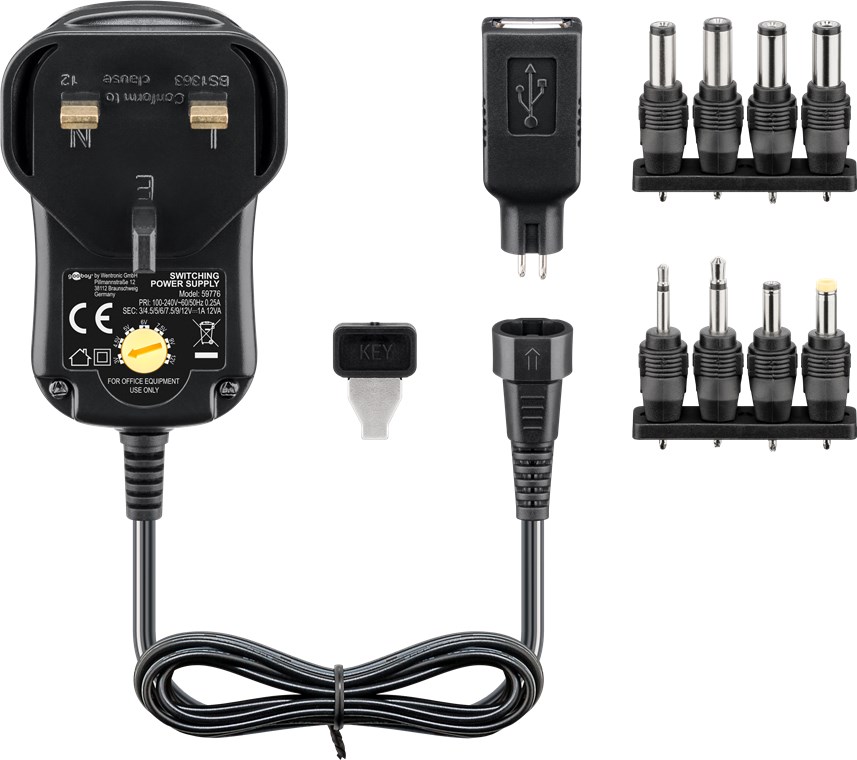

UK - 3 V - 12 V universal power supply
incl. 1x USB and 8x DC adapters - max. 12 W and 1 A
- Switching power supply for charging and operating DC devices such as video cameras, routers, scanners, radios, cross trainers, dart boards, baby monitors or toys
- Thanks to the exchangeable USB socket and jack plugs, the universal power adaptor unit eliminates the need for additional chargers and adapters.

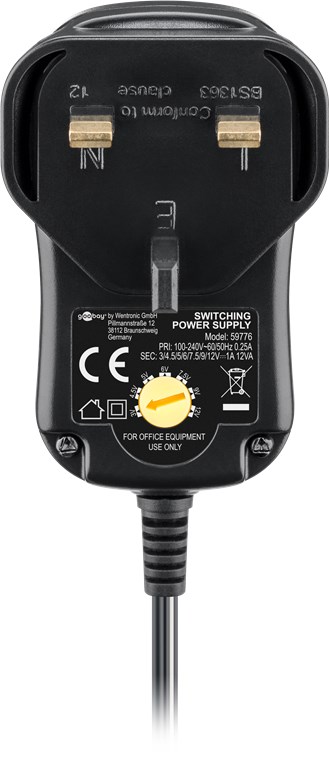

- The output voltage can be set at 3 V / 4.5 V / 5 V / 6 V / 7,5 V / 9 V / 12 V at 1 A with the help of the adjusting wheel.
- The voltage is easily adjustable with the enclosed key.

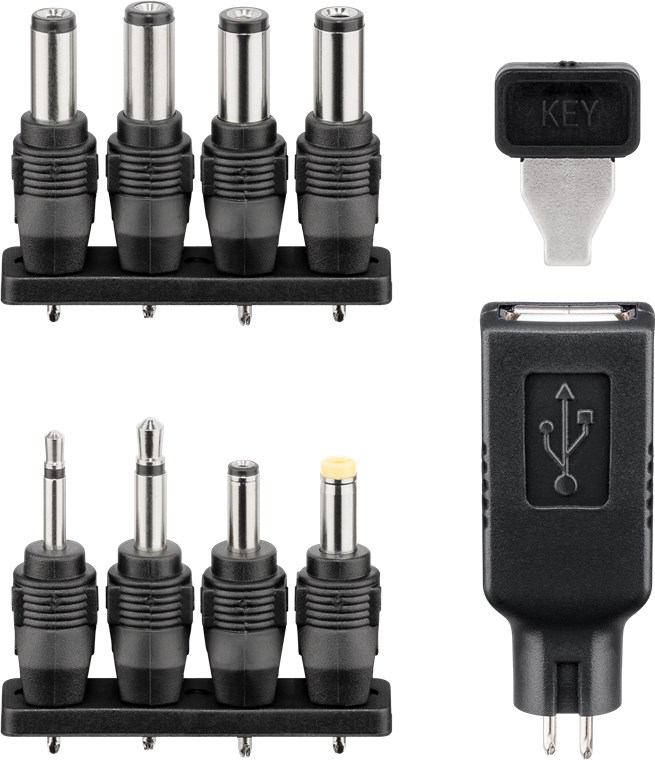

- 8x adapter plugs: 2.5 mm jack plug, 3.5 mm jack plug, DC connector 3.50 x 1.35 mm, 4.00 x 1.70 mm, 5.00 x 2.10 mm, 5.50 x 1.50 mm, 5.50 x 2.10 mm, 5.50 x 2.50 mm
- Thanks to the wide-range input from 100 V to 240 V, the multi-voltage power adapter (UK 3-pin male Type G, BS 1363) is suitable for use worldwide.
- Fuses in the DC power supply protect against short circuit, overload, overvoltage and overcurrent
Connections
| Input, type |
UK 3-pin male (Type G, BS 1363) |
| Output, type |
DC female (universal, 2-Pin) |
Performance
| No-load power consumption |
0.2 W |
| Power consumption |
12 W |
| Security Functions |
Short circuit, Overloading, Overcurrent, Overheating |
Device connections
| Output, Voltage Step |
3, 4,5, 12, 5, 6, 7,5, 9 V |
| voltage stabilization |
yes |
| Input, Voltage Range |
100 - 240 (AC) V |
| Output, max. amperage |
1 A |
Cable
General
| Color |
black |
| Markings |
CE, WEEE, Haus, Quader, EUP |
| Packaging type |
Retail Box |
Dimensions / Weight
| Consumption Unit |
1 pc. in cardboard box |
Scope of delivery
| Notebook adapter |
2.5 mm pawl, 3.5 mm pawl, DC adapter (3,50 x 1,35 mm), DC adapter (4,00 x 1,70 mm), DC adapter (5,00 x 2,10 mm), DC adapter (5,50 x 1,50 mm), DC adapter (5,50 x 2,10 mm), DC adapter (5,50 x 2,50 mm), USB 2.0 |
