Product and packaging similar. Subject to modifications and errors.

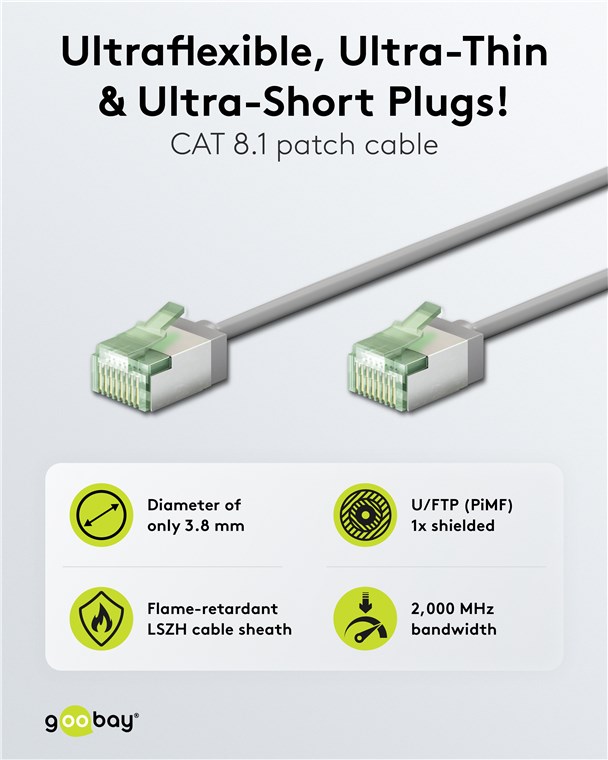

Ultra-Flexible CAT 8.1 Patch Cable, Slim, U/FTP, grey
extra-short plugs, 99.9 % oxygen-free copper conductor (OFC), LSZH, TPE sheath, AWG 32

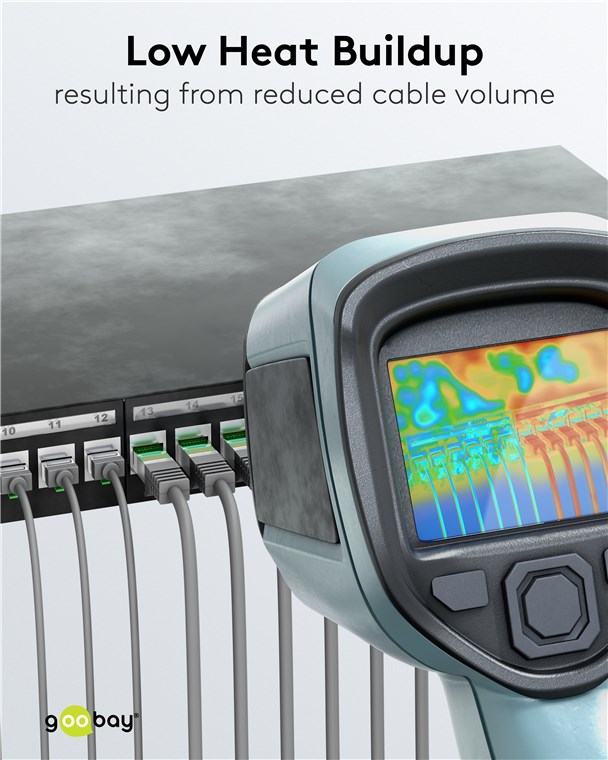

A CATegory of its own: The super-slim CAT cables with extra-short connectors drastically reduce the volume of material in server cabinets and patch panels - for significantly improved air circulation and less heat build-up than with conventional cabling. In addition, the soft TPE jacket and slim copper conductors provide the special flexibility and material efficiency that make this cable generation the perfect network partner.

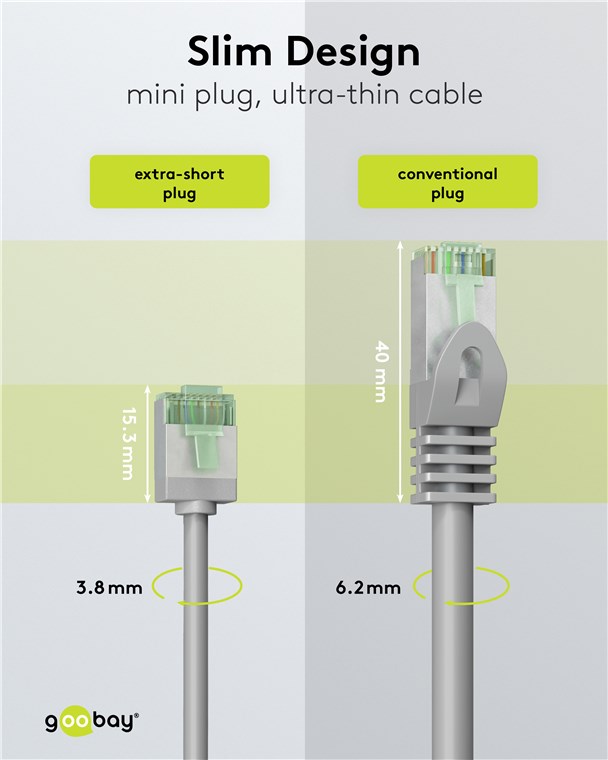

- Super-thin LAN cable with extra-short RJ45 connectors (15.3 mm) for a reduced cable volume in the server cabinet or patch panel, resulting in optimised air circulation
- Safe and flexible: Without twisted pair shielding and with a low-smoke, halogen-free TPE jacket for a particularly small bending radius and high flexibility
- With AWG 32 and an outer diameter of 3.8 mm, the cable is ultra-slim but just as powerful as a standard CAT cable
- The high-speed network cable is perfect for Ethernet networks with 25/40GBASE-T (40 Gigabit-capable) and backwards compatible with 10BASE-T, 100BASE-TX, 1000BASE-T 10GBASE-T and 10/100/1000/10000 Mbit/s
- With a transmission bandwidth of up to 2 GHz (2,000 MHz), the Ethernet cable has 4 times the bandwidth of CAT 6A cables
- The RJ45 cable is suitable for Power over Ethernet (PoE) and HDBaseT

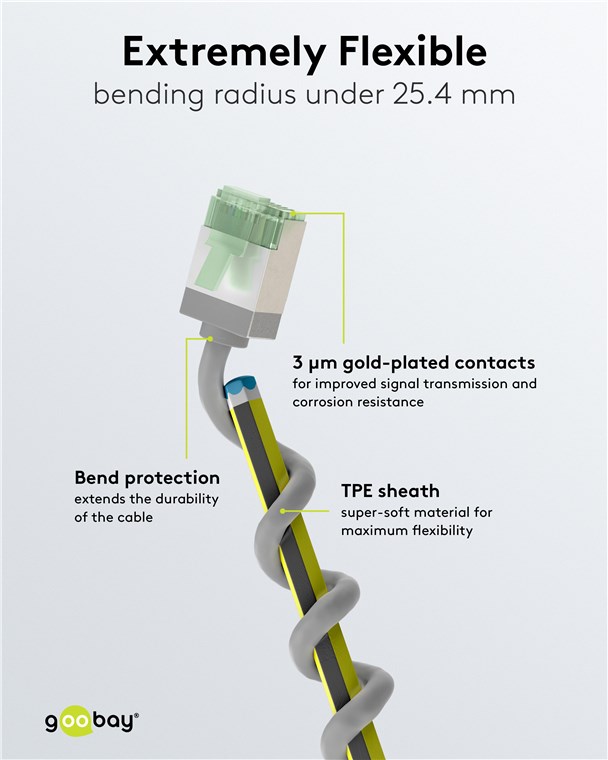

- The compact bend protection effectively prevents cable breakage and ensures a long service life for the Ethernet cable
The products are only labelled with a paper label, plastic bags and plastic cable ties are not used.
Compliant with applicable IEC and ISO standards:
- IEC 60332-1: Flame retardant
- IEC 61034: Low smoke
- IEC 60754-2: Halogen-free
- ISO 11801: Performance Fluke channel test
Technical specifications
Connections
| Connection, type | RJ45 male (8P8C) |
| Connection, contact material | gold-plated 3µm |
| Latch protection | both sides |
| Connection 2, type | RJ45 male (8P8C) |
| Contacting | EIA/TIA-568 B |
| Kink protection | both sides |
Cable
| Specification | CAT 8.1 |
| Cable type | Slimcable (super-flexible) |
| Shielding class | U/FTP |
| Number of shieldings | 1 x |

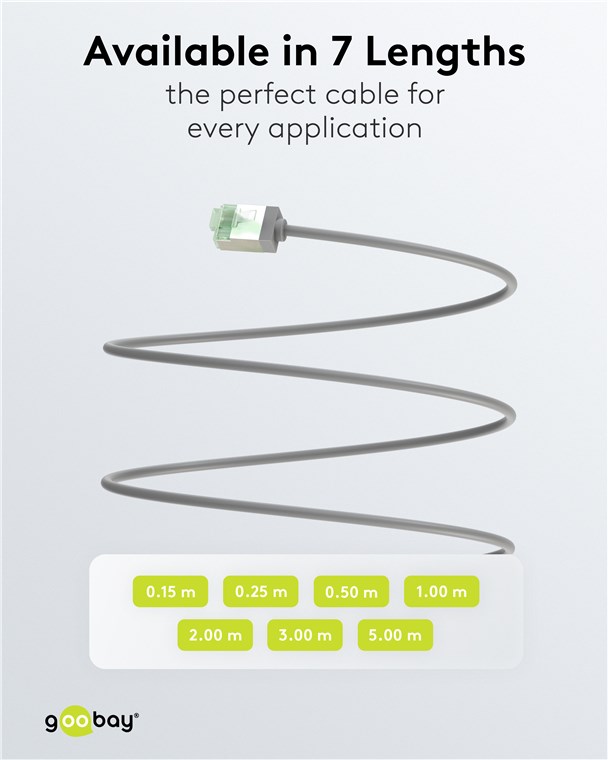

| Cable length | 5 m |
| Type 1, shielding | foil (alu) PiMF |
| Material cable sheath | LSZH-TPE |
| AWG | 32/7 (stranded) |
| Inner conductor material | CU (copper) |
| Cable sheath diameter (approx.) | 3.8 mm |
| bending radius > | 25.4 mm |
Signal transmission
| max. bandwidth | 2000 MHz |
General
| Color | grey |
| Markings | WEEE, CE |
| Operating temperature from | -20 °C |
| Operating temperature up to | 75 °C |
| Packaging type | Cable Tag |
Dimensions / Weight
| Consumption Unit | 1 pc. bulk |
£8.99 RRP
Packing units:
1 / 100
