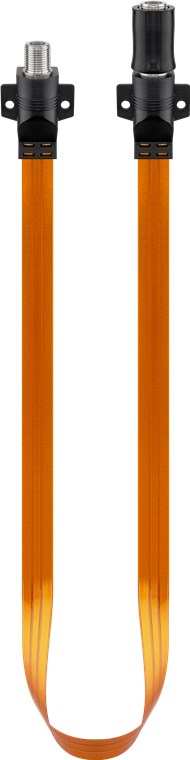

Waterproof SAT window feed-through, extremely flat (0.3 mm)
F socket > F socket
- Transparent SAT extension cable with PCB foil
- For easy routing of coaxial cables through window and door frames with a small clearance without impairing the closing function
- Extremely flexible and flat with a thickness of only 0.3 mm
- Can be used with all commercially available SAT cables and antenna cables with F plugs
- Rubber grommet ensures waterproof F-connection.

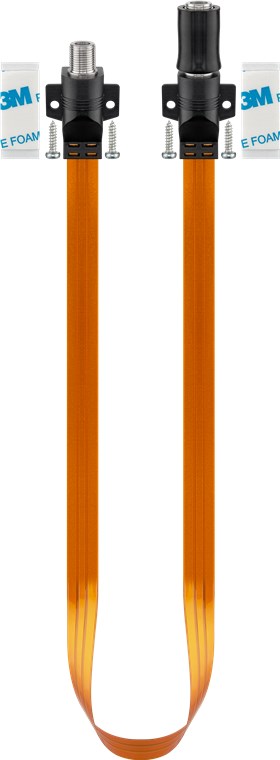

- Can be permanently attached due to screw fastening option
Connections
| Connection, type |
F female |
| Connection 2, type |
F female |
| Connection, length |
42.5 mm |
Cable
| Cable type |
flat cable |
| Cable length |
0.5 m |
| Inner conductor material |
CU (copper) |
| Cable sheath diameter (approx.) |
0.3 mm |
| height of cable sheath |
0.3 mm |
| width of cable sheath |
12 mm |
Signal transmission
General
| Markings |
WEEE, CE |
| Packaging type |
Bulk |
Dimensions / Weight
| Consumption Unit |
1 pc. in polybag |
| Length |
520 mm |
£11.99 RRP
Packing units:
1 / 10 / 150 / 300
