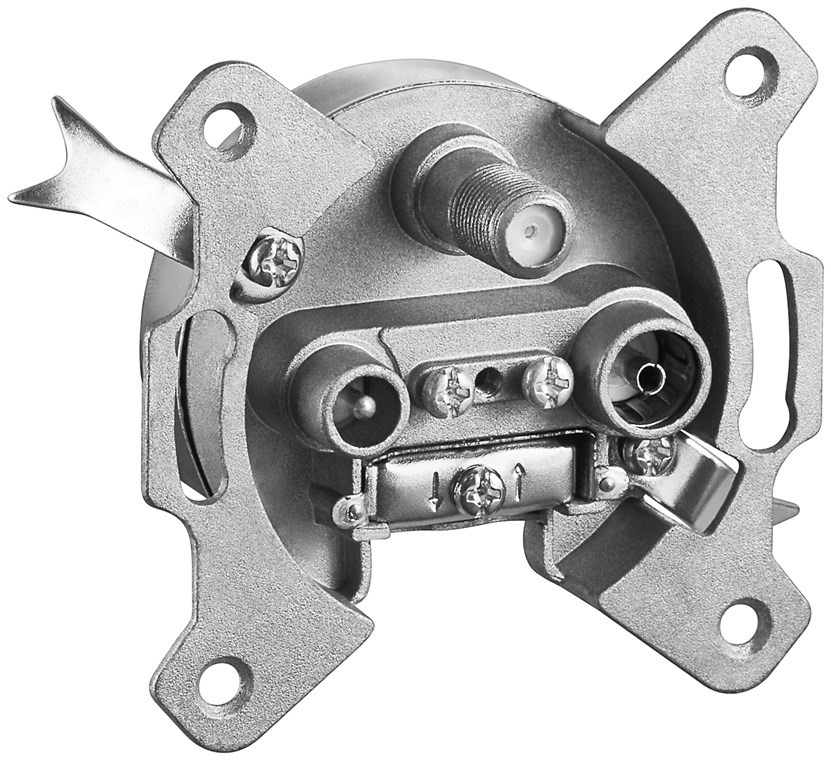

3-Hole Aerial Through Socket

without DC feed-through

• Antenna socket for DVB-C systems, broadcasting, SAT, cable TV and DVB-T
• Aerial wall socket is suitable for special channels and return channels.
• Coax wall socket for connecting a multiswitch or LNB, suitable for surface and flush mounting
• 950 MHz - 2400 MHz (SAT)
• 5 MHz - 65 MHz/125 MHz - 862 MHz (TV)
• 88 MHz - 120 MHz (radio)
• Characteristic impedance: 75 ohm

Technical specifications

Signal transmission

through loss	6 dB
Connection loss radio connection	12.5–13.5 dB
Connection damping SAT connection	13 dB
Connection damping TV connection	12.5–14 dB
Frequency range radio connection	88–120 MHz
Frequency range SAT connection	950–2,400 MHz
Frequency range TV connection Forward path	125–862 MHz
Frequency range TV connector rear channel up	5–65 MHz

General

Markings	CE
Packaging type	Bulk

Dimensions / Weight

Consumption Unit

1 pc. in cardboard box
