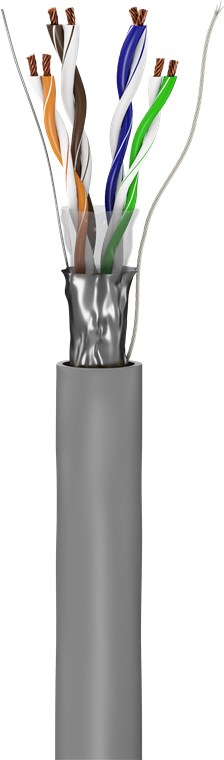

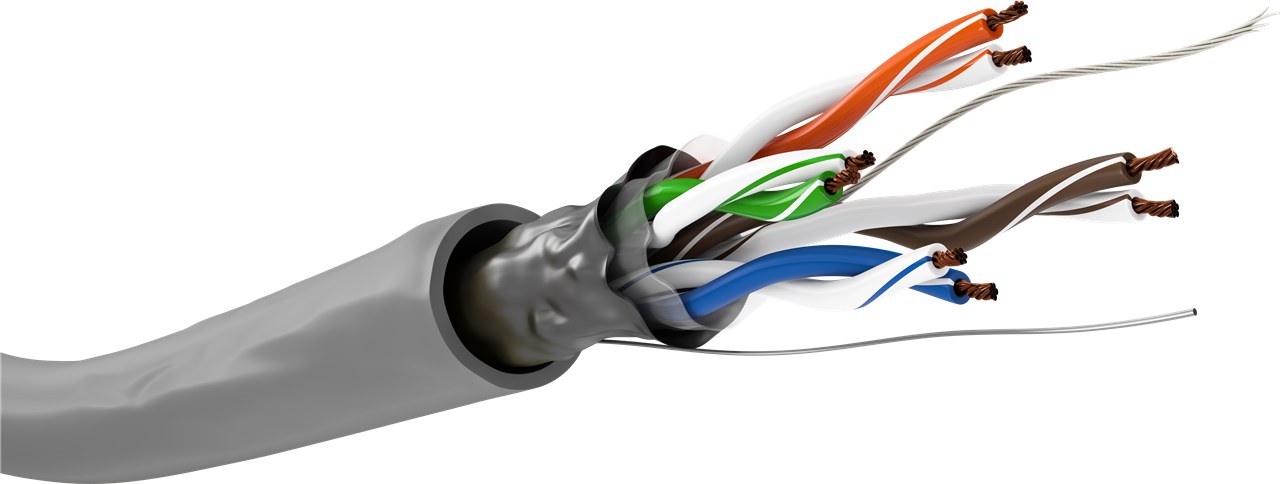

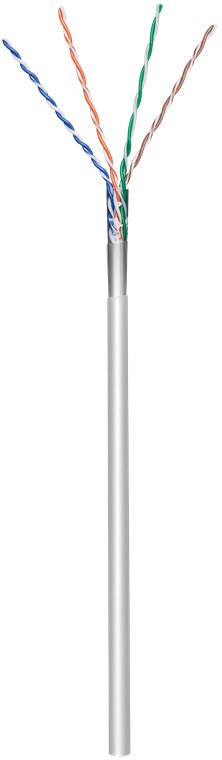

CAT 5e Network Cable, F/UTP, grey
Copper conductor (CU), AWG 26/7 (stranded), PVC cable sheath
CAT 5e Network Cable, F/UTP, grey
Copper conductor (CU), AWG 26/7 (stranded), PVC cable sheath
Article details
Our patch cables transmit signals in top quality at high speed, always guaranteeing a stable connection. High-quality inner conductors, robust cable sheathing and precisely fitting plugs distinguish our portfolio of connection cables. Goobay always provides the perfect products for your network needs - whether you aim to set up a home or company network. Simply. All. You need!
- Shielded twisted-pair LAN cable for the small office and working from home (SOHO and WFH applications)
- Unterminated patch cable for assembly and installation with IDC connection technology
- Flexible cable for indoor assembly with a maximum transmission length of 60 m
- Foil screen (F/UTP) prevents interference from external sources (crosstalk) and provides an ideal signal distribution with minimal losses
- High-quality copper conductor (CU) and shielding guarantee an excellent and powerful network connection.
- Sturdy PVC cable sheathing protects the Ethernet cable from breakage.
- Complies with the Construction Products Regulation (CPR) and Eca fire protection class
Technical specifications
Cable
Specification
CAT 5e
Diameter of insulated conductor
0.9 mm (+/-0.05)
Cable type
round cable
Shielding class
F/UTP
Number of shieldings
1 x
Meter scaling
yes
Type 1, shielding
foil (aluminium)
AWG
26/7 (stranded)
Inner Conductor number
7 pieces
Cable length
100 m
inner conductor, core diameter
0.15 mm
Inner conductor material
CU (copper)
Material cable sheath
PVC
Cable sheath diameter (approx.)
5.6 mm
Fire class (CPR)
Eca
Signal transmission
usable up to cable length
60 m
max. bandwidth
100 MHz
Impedance
100 Ω
General
Color
grey
Markings
ECA_CPR, CE
Packaging type
Cable spool-drum
Dimensions / Weight
Consumption Unit
1 pc. cable reel
Downloads
Packing units:
1 / 4
Item: 15012
EAN: 4040849150128
