Goobay

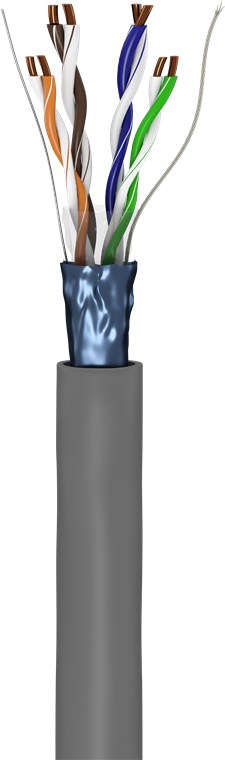

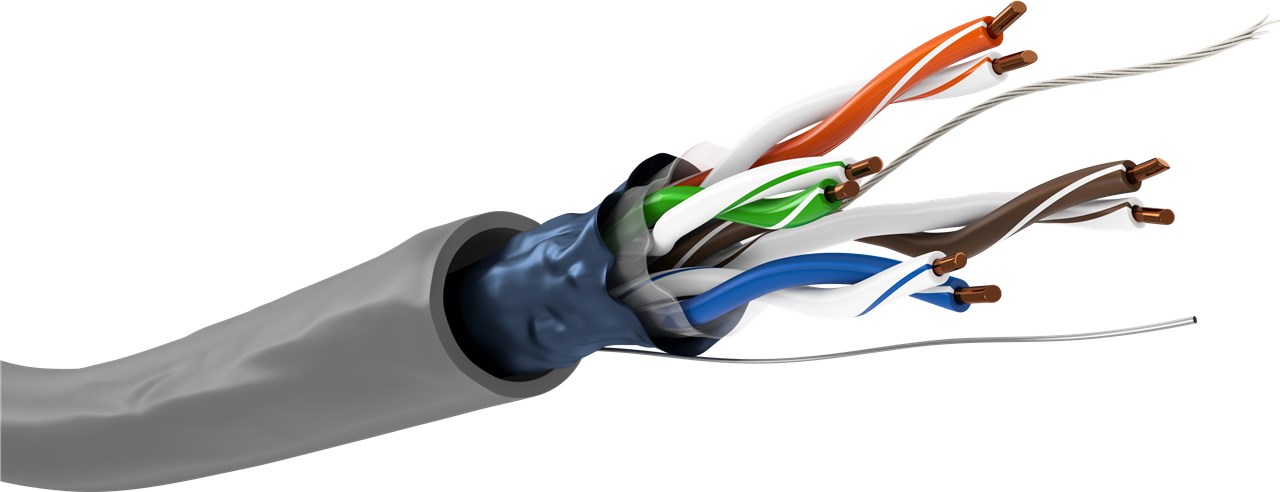

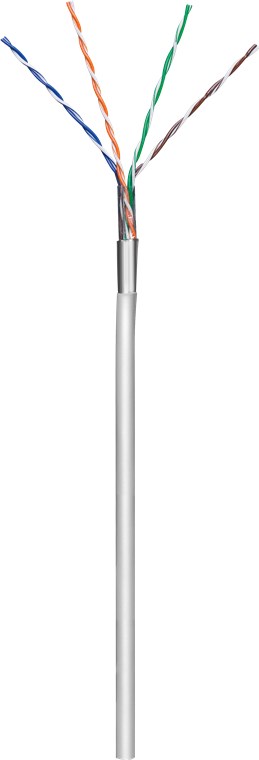

CAT 5e network cable, F/UTP, grey
CU, AWG 24/1 (solid), LSZH
/6
Product and packaging similar. Subject to modifications and errors.
Goobay
CAT 5e network cable, F/UTP, grey
CU, AWG 24/1 (solid), LSZH
Article details
  • non-terminated data-/installationcable for proccessing and installation with LSA connection technology for indoor using
Technical specifications
Cable
Specification
CAT 5e
Cable type
round cable
Shielding class
F/UTP
Number of shieldings
1 x
Meter scaling
yes
Type 1, shielding
foil (aluminium)
AWG
24/1 (solid)
Inner conductor material
CU (copper)
Material cable sheath
LSZH
Cable sheath diameter (approx.)
5.7 mm
Cable length
305 m
LSZH compliant
yes
Fire class (CPR)
Eca
Signal transmission
usable up to cable length
90 m
max. bandwidth
100 MHz
Impedance
100 Ω
General
Color
grey
Markings
ECA_CPR, CE
Packaging type
Pull-out-Box
Dimensions / Weight
Consumption Unit
1 pc. in box
Downloads
Product data sheet pdf Declaration of conformity pdf
Packaging type
Cable spool-drum
Pull-out-Box
Cable length
305 m
Item: 50975
EAN: 4040849509759
Manufacturer
Wentronic GmbH, Pillmannstraße 12,
38112 Braunschweig, Germany
www.wentronic.com, cs@wentronic.com
