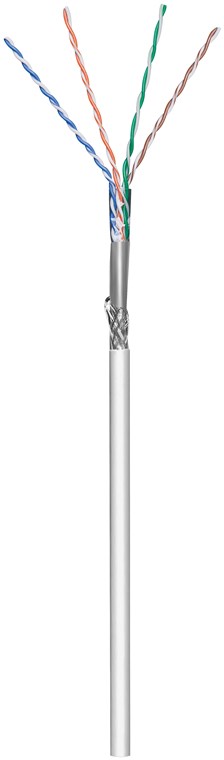

CAT 5e network cable, SF/UTP, grey
Copper-clad aluminium wire (CCA), AWG 24/1 (solid), PVC cable sheath
CAT 5e network cable, SF/UTP, grey
Copper-clad aluminium wire (CCA), AWG 24/1 (solid), PVC cable sheath
Article details
Our patch cables transmit signals in top quality at high speed, always guaranteeing a stable connection. High-quality inner conductors, robust cable sheathing and precisely fitting plugs distinguish our portfolio of connection cables. Goobay always provides the perfect products for your network needs - whether you aim to set up a home or company network. Simply. All. You need!
- Double-shielded twisted-pair LAN cable for the small office and working from home (SOHO and WFH applications)
- Unterminated patch cable for assembly and installation with IDC connection technology
- Flexible data and installation cable for indoor assembly with a maximum transmission length of 40 m

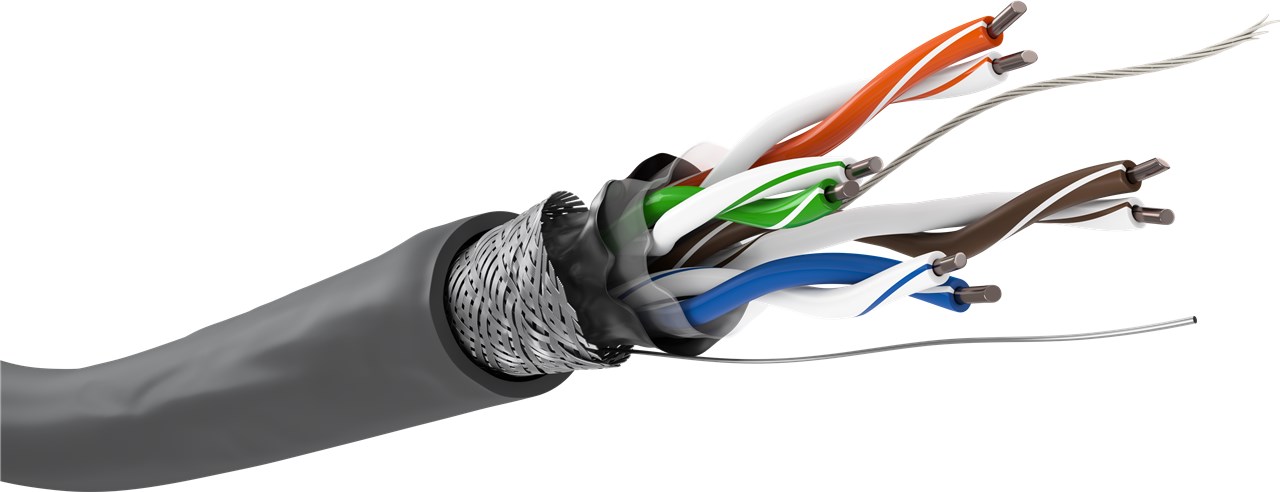

- A foil and a braid screen (SF/UTP) prevent interference from external sources and provide ideal signal distribution with minimal losses.
- High-quality copper-clad aluminium wire (CCA) and double shield guarantee an excellent and powerful network connection.
- Sturdy PVC cable sheathing protects the Ethernet cable from breakage.
- Complies with the Construction Products Regulation (CPR) and Eca fire protection class
Technical specifications
Cable
Cable type
round cable
Specification
CAT 5e
Cable sheath diameter (approx.)
5.7 mm
Diameter of insulated conductor
0.9 mm (+/-0.05)
Cable length
305 m
Inner conductor material
CCA (copper-clad aluminium)
AWG
24/1 (solid)
Number of shieldings
2 x
Type 1, shielding
foil (aluminium)
Type 2, shielding
braid (aluminium)
Material cable sheath
PVC
Shielding class
SF/UTP
Fire class (CPR)
Eca
Signal transmission
usable up to cable length
40 m
Impedance
100 Ω
max. bandwidth
100 MHz
General
Color
grey
Markings
ECA_CPR, CE, SOHO
Packaging type
Pull-out-Box
Dimensions / Weight
Consumption Unit
1 pc. in box
