Goobay
CAT 6A Network Cable, S/FTP (PiMF), grey
Copper conductor (CU), AWG 26/7 (stranded), halogen-free cable sheath (LSZH)
Goobay
CAT 6A Network Cable, S/FTP (PiMF), grey
Copper conductor (CU), AWG 26/7 (stranded), halogen-free cable sheath (LSZH)
Article details
Our patch cables transmit signals in top quality at high speed, always guaranteeing a stable connection. High-quality inner conductors, robust cable sheathing and precisely fitting plugs distinguish our portfolio of connection cables. Goobay always provides the perfect products for your network needs - whether you aim to set up a home or company network. Simply. All. You need!
  • Double shielded twisted-pair LAN cable for the small office and working from home (SOHO and WFH applications)
  • Unterminated patch cable for assembly and installation with IDC connection technology
  • Flexible cable for indoor assembly with a maximum transmission length of 50 m
  • S/FTP overall shield: aluminium foil shield for individual wire pairs (PiMF) and aluminium braid shield for the cable sheath
  • Complies with the Construction Products Regulation (CPR) and Fca fire protection class
  • In the event of a fire, the halogen-free jacket of the Ethernet cable prevents the outgassing of hazardous substances and minimises smoke development
  • The internet cable is not approved for permanent installation in buildings.
Technical specifications
Cable
Cable type
round cable
Specification
CAT 6A
Cable sheath diameter (approx.)
5.9 mm
Cable length
305 m
Diameter of insulated conductor
1.03 mm (+/-0.05)
Shielding class
S/FTP (PiMF)
Inner conductor material
CU (copper)
AWG
26/7 (stranded)
Number of shieldings
2 x
Type 1, shielding
foil (alu) PiMF
Type 2, shielding
braid (alu) overall shield
Material cable sheath
LSZH
LSZH compliant
yes
Fire class (CPR)
Fca
Signal transmission
usable up to cable length
50 m
max. bandwidth
500 MHz
Impedance
100 Ω
General
Color
grey
Markings
CE
Operating temperature from
-20 °C
Operating temperature up to
60 °C
Packaging type

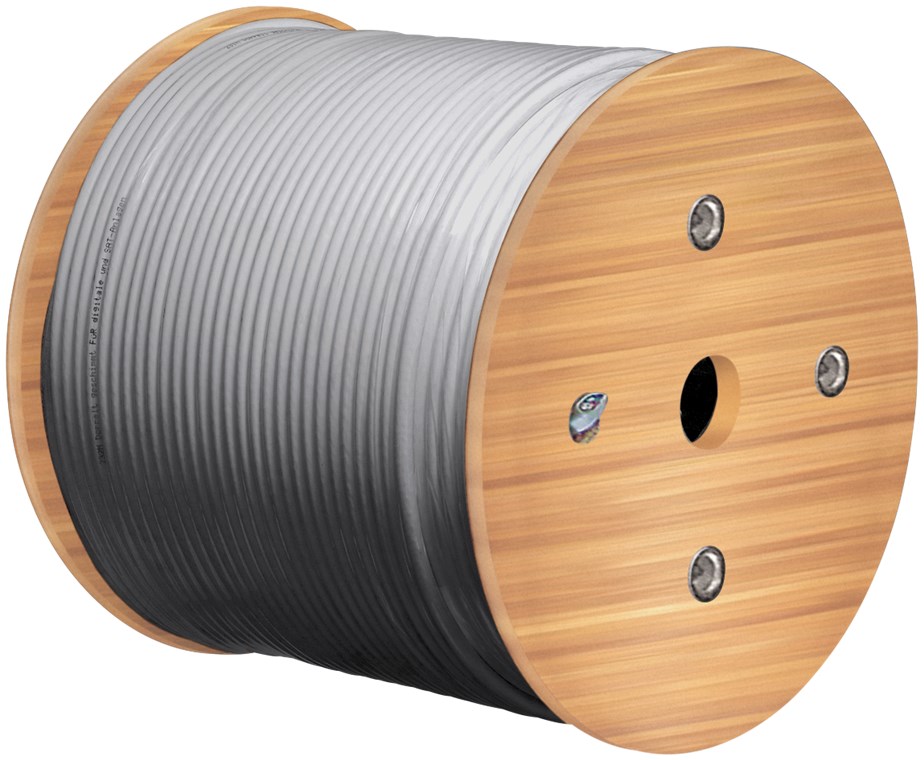

wooden drum
Dimensions / Weight
Consumption Unit
1 pc. cable reel
Downloads
Packing units:
1
Packaging type
Cable length
Item: 96095
EAN: 4040849960956
