Goobay

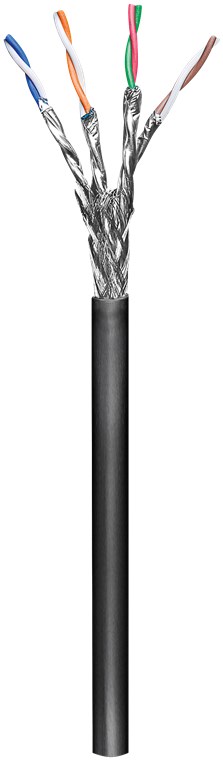

CAT 6A Outdoor Network Cable, S/FTP (PiMF), black
copper conductor (CU), AWG 23/1 (solid), polyethylene cable sheath (PE)
Goobay
CAT 6A Outdoor Network Cable, S/FTP (PiMF), black
copper conductor (CU), AWG 23/1 (solid), polyethylene cable sheath (PE)
Article details
The Goobay network cable is ideal for outdoor use, e.g. in the garden, for camping, on building facades and for connecting surveillance cameras. The stable cable sheath made of polyethylene is extremely resistant to weathering and UV radiation.
  • Double-shielded twisted-pair LAN cable for outdoor installation
  • Unterminated patch cable for assembly and installation with LSA connection technology. No approval for permanent installation in buildings.
  • Flexible, unterminated data and installation cable for outdoor use
  • Double-layer polyethylene (PE) jacket protects the network cable outdoors and makes it extremely weather-resistant.
  • The outdoor Ethernet cable is ideal for use in building facades and surveillance cameras.
  • High-quality copper conductor (CU) guarantees an excellent, powerful network connection.
  • CAT 6(A) network cable is suitable for Gigabit Ethernet with speeds of up to 10/100/1000 Mbit/s, Power over Ethernet (PoE, PoE+, UPoE and 4PPoE) and HDBaseT.
Technical specifications
Cable
Cable length
100 m
Fire class (CPR)
Fca
Specification
CAT 6A
Shielding class
S/FTP (PiMF)
Number of shieldings
2 x
Type 1, shielding
foil (alu) PiMF
Type 2, shielding
braid (alu) overall shield
AWG
23/1 (solid)
Inner conductor material
CU (copper)
Diameter of insulated conductor
1.33 mm (+/-0.05)
Material cable sheath
LSZH
Cable sheath diameter (approx.)
7.6 mm
Meter scaling
LSZH compliant
yes
Cable type
outdoor cable
Signal transmission
max. bandwidth
500 MHz
Impedance
100 Ω
usable up to cable length
90 m
General
Color
black
Markings
FCA_CPR, CE
Operating temperature from
-20 °C
Operating temperature up to
75 °C
Packaging type
Cable ring-coil
Dimensions / Weight
Consumption Unit
1 pc. coil
Downloads
Packing units:
1 / 2
Item: 77624
EAN: 4040849776243
