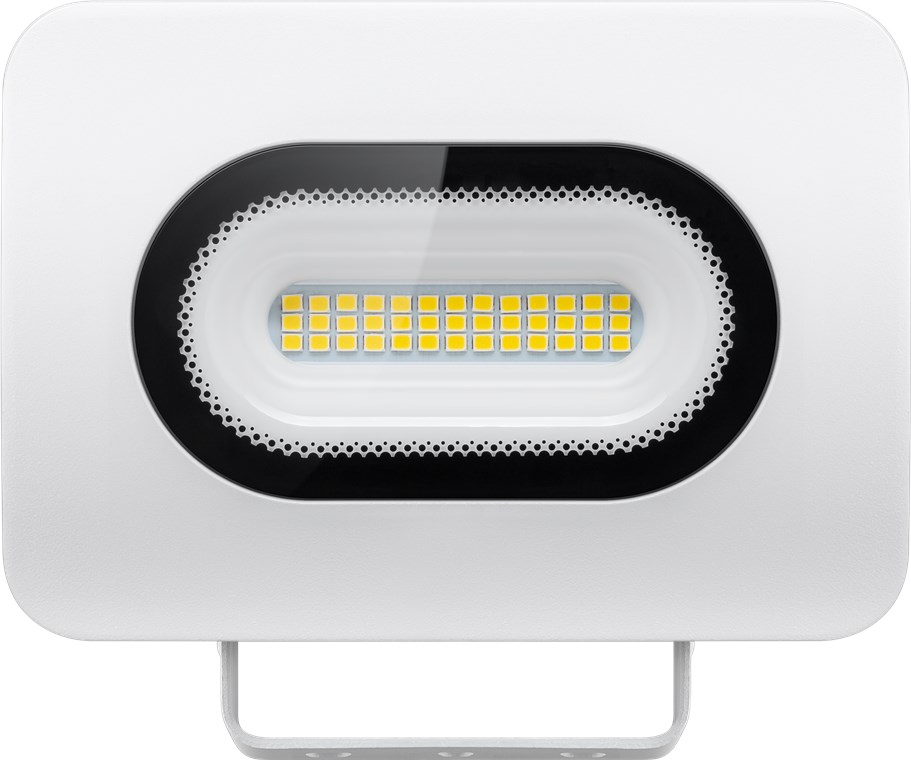

LED floodlight, 20 W, Slim Design
modern lighting solution for building entrances, garages, carports and access paths
LED floodlight, 20 W, Slim Design
modern lighting solution for building entrances, garages, carports and access paths
Article details
- extremely flat shape, ultramodern design and high energy efficiency
- very long service life, thanks to integrated, non-removable LED light source
- characterised by very bright, neutral white light with large beam angle of 110°
- IP65 – suitable for outdoor use (-40–50°C)
- shock-resistant aluminium die-cast housing and safety glass protect against the weather

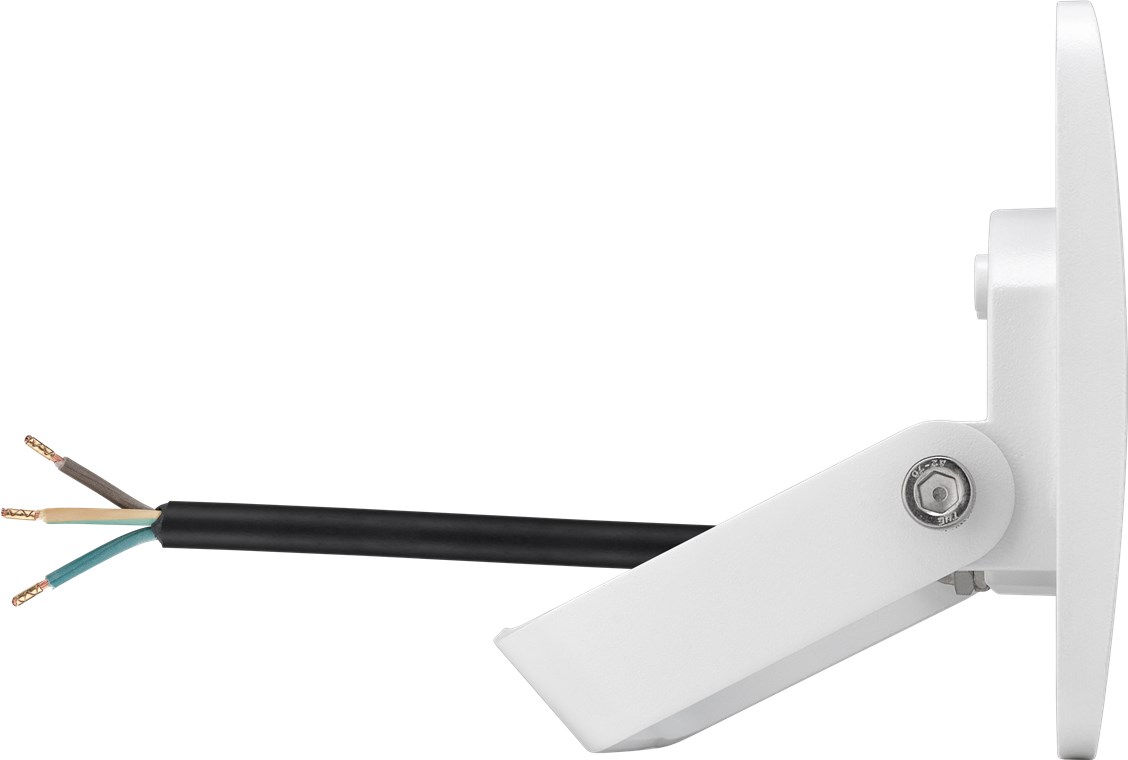

- very stable, adjustable mounting bracket for wall mounting and approx. 30 cm connection cable with end splices
Technical specifications
Battery
rechargeable
no
Performance
luminous source
light emitting diode (LED)
Luminous color
classic white
operating voltage
230 V (AC)
Illuminate-Type
SMD LED
Number of LEDs
39
color temperature
4000 K
Power consumption
20 W
corresponds light bulb
116 W
Dimmability
not dimmable
Max. light range
5 m
Luminous flux
1600 lm
Rated luminous flux
1600 lm
Light yield
80 lm/W
Startup time
0.1 s
startup time to 60% light
0.1 s
color rendering index
70 Ra
electric power factor
0.5
weighted energy consumption
20 kWh/1.000 h
Installation height from
2 m
Installation Height up to
4 m
recommended installation height
2 - 4 m
Cable
Cable length
0.3 m
Build
Beam Angle
110 °
General
protection class
IP65
Appliance Class
I
Energy efficiency rating
A 874/2012/EU
General service life
25000 hrs.
Number of switching cycles
25000 pcs.
Color
white
Material
Aluminium
Markings
WEEE, CE
Operating temperature from
-40 °C
Operating temperature up to
50 °C
Packaging type
Retail Box
Dimensions / Weight
Consumption Unit
1 pc. in cardboard box
Length
141.5 mm
Width
35 mm
Height
101.5 mm
Weight
276 g
accessory - Power supply
Power frequency
50 Hz
Language Scope
packaging
de, en, fr, it, es, nl, da, sv, pl, cs, fi, ro, el, ru, tr
Downloads
Packing units:
1 / 30
Item: 38703
EAN: 4040849387036
