Goobay

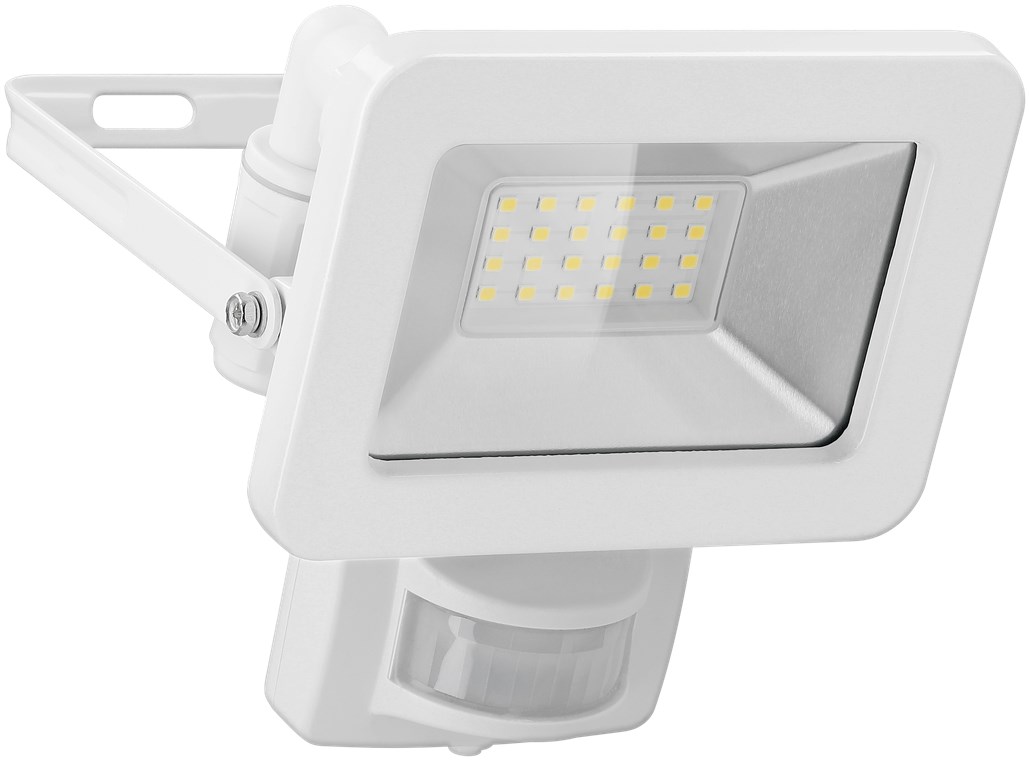

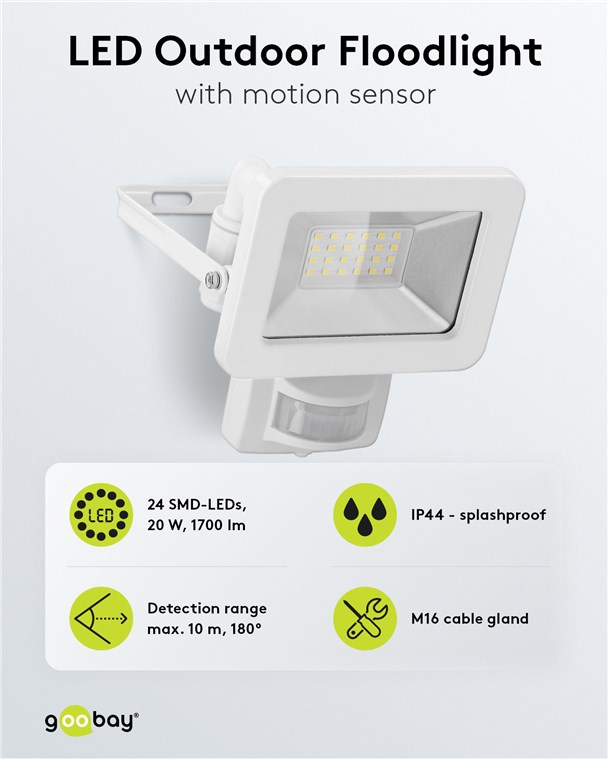

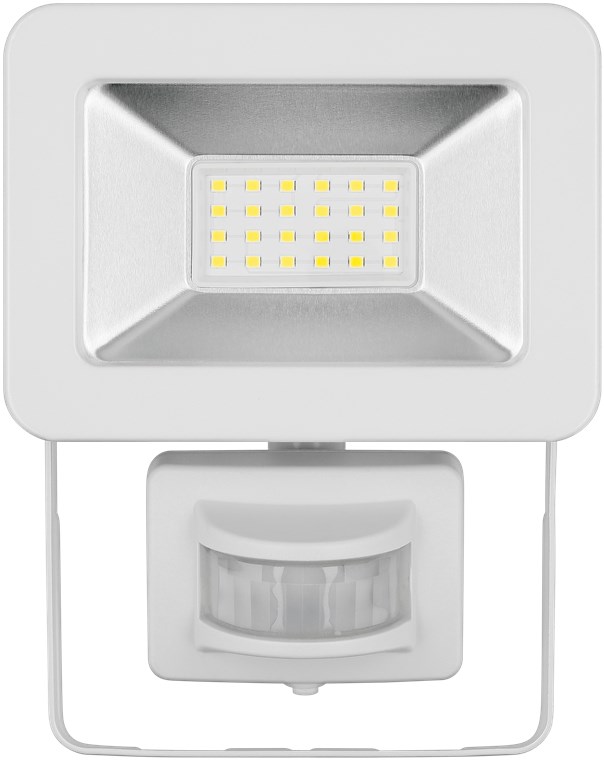

LED outdoor floodlight, 20 W, with motion sensor
with 1700 lm, neutral white light (4000 K), PIR sensor with ON / OFF function and M16 cable gland, suitable for outdoor use (IP44)
Goobay
LED outdoor floodlight, 20 W, with motion sensor
with 1700 lm, neutral white light (4000 K), PIR sensor with ON / OFF function and M16 cable gland, suitable for outdoor use (IP44)
Article details
  • Very bright and functional LED outdoor light in a compact design for house entrances, garages, carports and access routes

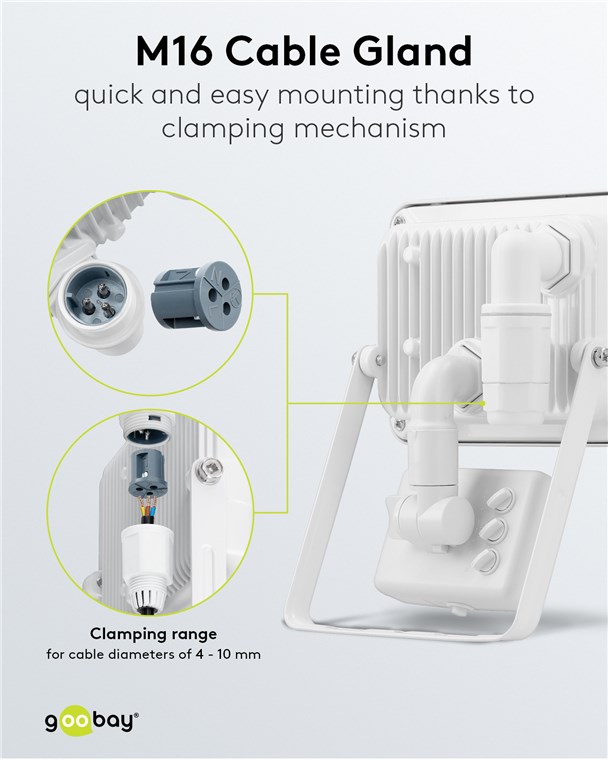

  • Quick and easy assembly thanks to the practical M16 cable gland with plug-in function for a clamping area / cable diameter of 4–10 mm

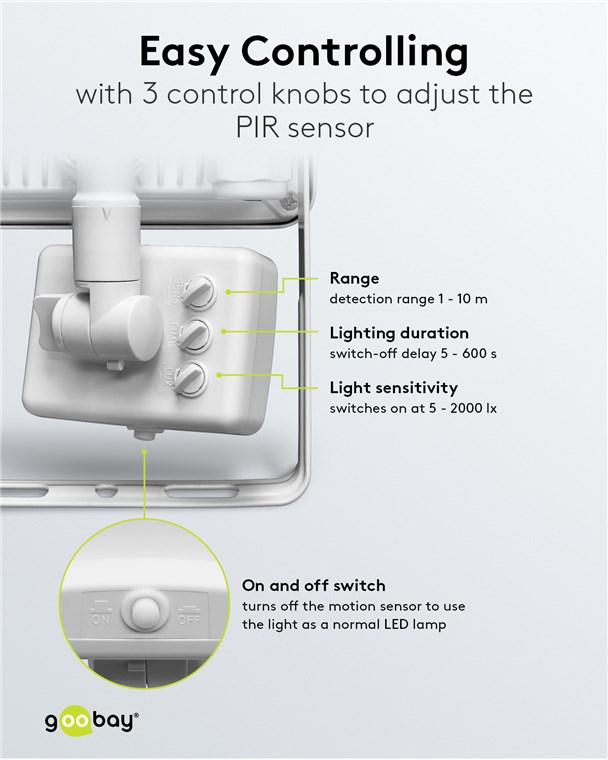

  • Detection range PIR sensor: max. 10 m at a 180 ° angle, adjustable switch-off delay (5 - 600 s), light sensitivity (5 - 2000 lx) & range (1 - 10 m)
  • Highlight: the motion detector can be switched on and off, which means that it can be used as a normal outdoor spotlight

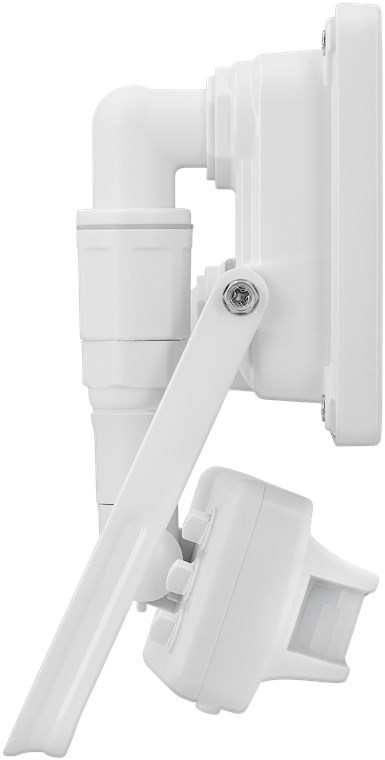

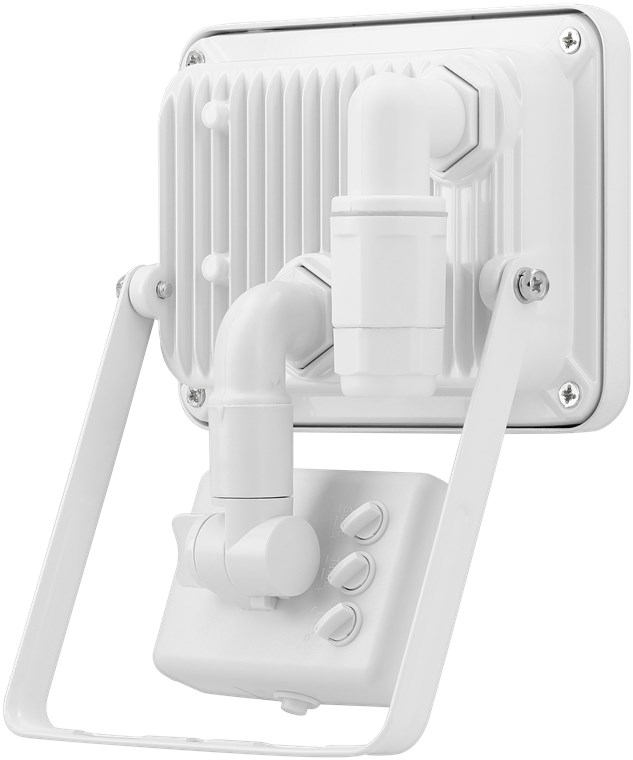

  • Stable, angled mounting bracket for wall mounting or attachment to a tripod with a rotation range of up to 180 °
  • High quality and shockproof aluminum die-cast housing, transparent and tempered glass, plastic sensor
  • Energy savings of up to 80 % compared to halogen lamp floodlights

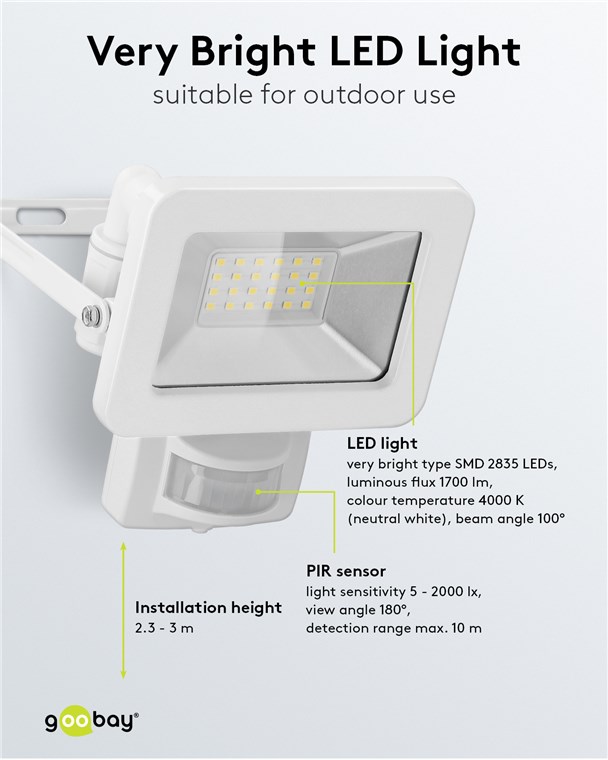

Technical specifications
Performance
luminous source
light emitting diode (LED)
Luminous color
classic white
color temperature
4000 K
Illuminate-Type
SMD 2835 LED
Power consumption
20 W
Dimmability
not dimmable
Luminous flux
1706 lm
Rated luminous flux
1700 lm
Light yield
85 lm/W
Startup time
0.1 s
startup time to 60% light
1 s
color rendering index
81 Ra
electric power factor
0.9
Lamp service life factor
1
light sensitivity adjustable
5 - 2000 lx
weighted energy consumption
20 kWh/1.000 h
operating voltage
230 V (AC)
switch-off delay from
5 s
switch-off delay to
600 s
Installation height from
2.3 m
Installation Height up to
3 m
sensor type
passive infrared (PIR)
max. detection range
10 m
max view angle
180 °
switch-off delay adjustable
5 - 600 s
recommended installation height
2.3 - 3 m
No-load power consumption
0.29 W
Device connections
Power frequency
50 Hz
Build
Beam Angle
100 °
cover type
crystal clear
General
Packaging type
Retail Box
Consumption Unit
1 pc. in cardboard box
Energy efficiency rating
F
protection class
IP44
General service life
25000 hrs.
rated lamp lifetime
25000 hrs.
Number of switching cycles
15000 pcs.
mercury content
0
Appliance Class
I
Color
white
Material
glass, metal, plastic
Markings
CE, WEEE
Applications
Outdoor, workshop
Operating temperature from
-25 °C
Operating temperature up to
40 °C

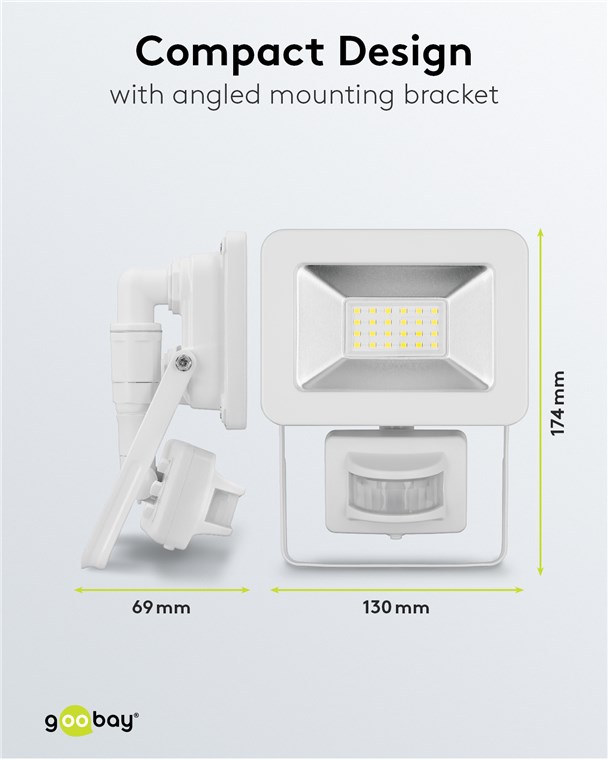

Width
130 mm
Height
174 mm
depth
69 mm
Weight
385 g
Scope of delivery
Storage
manual
Language Scope
Operation manual
de, en, fr, it, nl, es, da, se, pl, cz
packaging
de, en, fr, it, es, nl, da, sv, pl, cs
£18.99 RRP
Packing units:
1 / 24
Item: 53880
EAN: 4040849538803
