Basic
TV wall mount Basic FULLMOTION (S)
13 to 43 inch (33-109 cm), max. 20 kg
.jpg.jpg)
.jpg.jpg)
.jpg.jpg)
Basic
TV wall mount Basic FULLMOTION (S)
13 to 43 inch (33-109 cm), max. 20 kg
Article details
When is this mount your perfect match? If you often watch television from different seats and need flexible viewing angles, e.g. in the living room or kitchen-diner. Plot twist: This mount can also be used in portrait format. The rotation angle of up to 90° comes in handy if you frequently use media that is tailored to portrait format, e.g. apps or videos on Instagram, TikTok or YouTube.
- Flexible TV mount for the optimal viewing angle: +5° to -15° tilt (up/down), +60/-60° swivel (left/right), +5° to -90° rotation and 19.8 cm extension
- Rotation angle up to 90°: Perfect for content in portrait format, e.g. social media and apps, as well as for using televisions as digital advertising boards or information boards in commercial and food service establishments
- The TV mount is perfect for small devices in alcoves and under/between wall cabinets, e.g. in the kitchen or bedroom
- With a pull-out range of up to 19.8 cm and a swivel function, the wall mount allows you to view the television even from difficult angles
- For a discreet appearance, the mount achieves a minimum wall distance of 6.6 cm so that the television does not protrude into the room
- The TV wall mount is suitable for most TVs from popular brands, such as Samsung (QLED and LED), Sony, Philips and LG, as well as many sizes, such as 13'', 24'', 27'', 32'', 40'' and 43''
- The TV mount is compatible with the VESA® standard 200x200 mm and all smaller VESA® dimensions
Technical specifications
Performance
Bracket type
TV Fullmotion
screen size
S (33-109 cm / 13-43")
maximum load
20 kg
min. Wall distance
66
max. Wall distance
198
wall distance
66 - 198
Swivel Range
+60°~-60°
inclination and tilting ranges
+5°~-15°
max. Mouting Hole (VESA)
200x200
VESA (FDMI)
75 x 75 mm, 100 x 100 mm, 100 x 200 mm, 200 x 100 mm, 200 x 200 mm
General
Color
black
Material
steel (powder-coated)
Packaging type
Retail Box

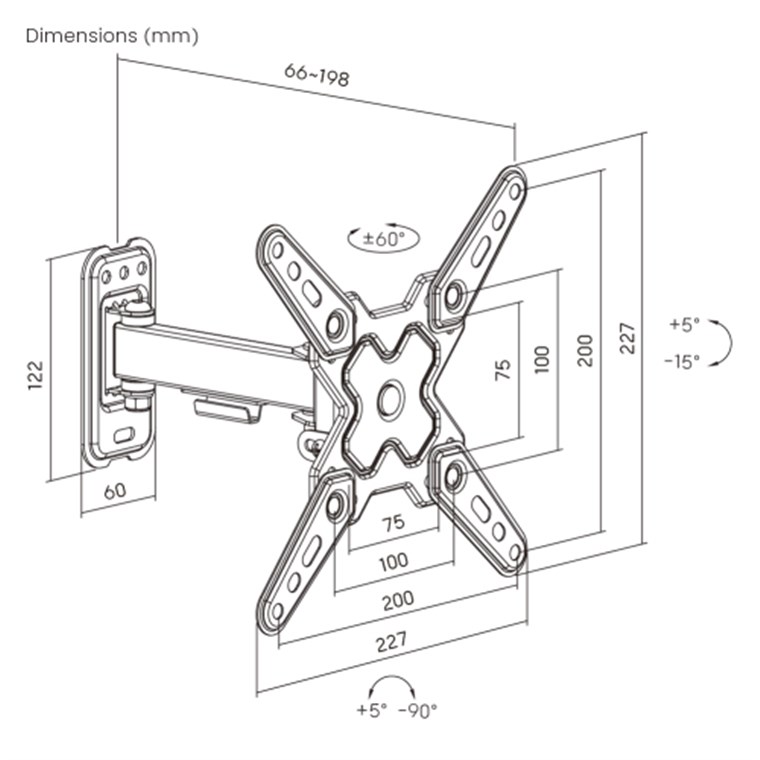

Dimensions / Weight
Consumption Unit
1 pc. in cardboard box
Width
198 mm
Height
227 mm
depth
227 mm
Weight
900 g
Scope of delivery
Assembly Material
dowel, screws
Language Scope
Operation manual
de, en, fr, it, es, nl, da, se, cz, pl
warranty
Warranty
30 years
Item: 79761
EAN: 4040849797613
